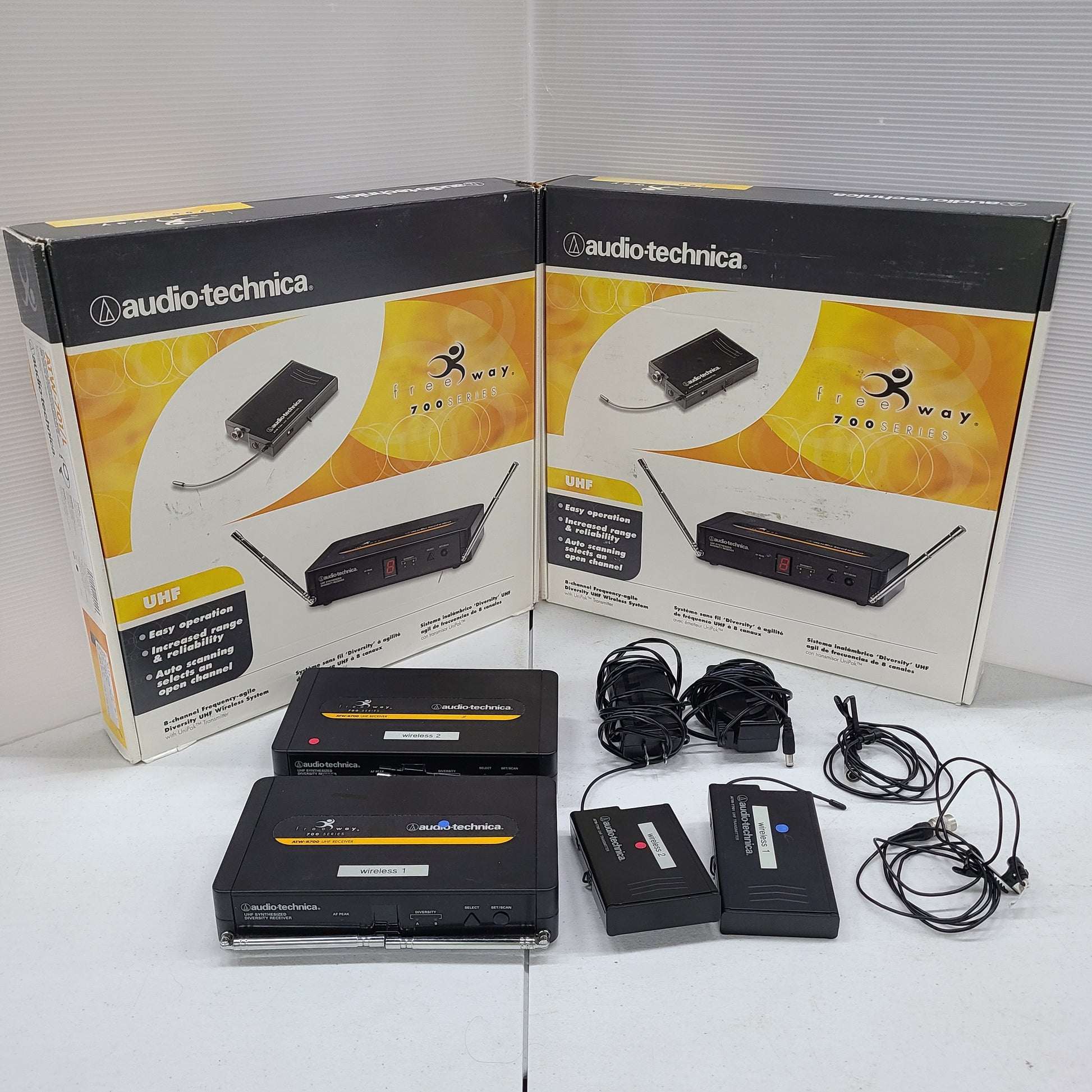

Audio-Technica Freeway 700 Series – Key Features

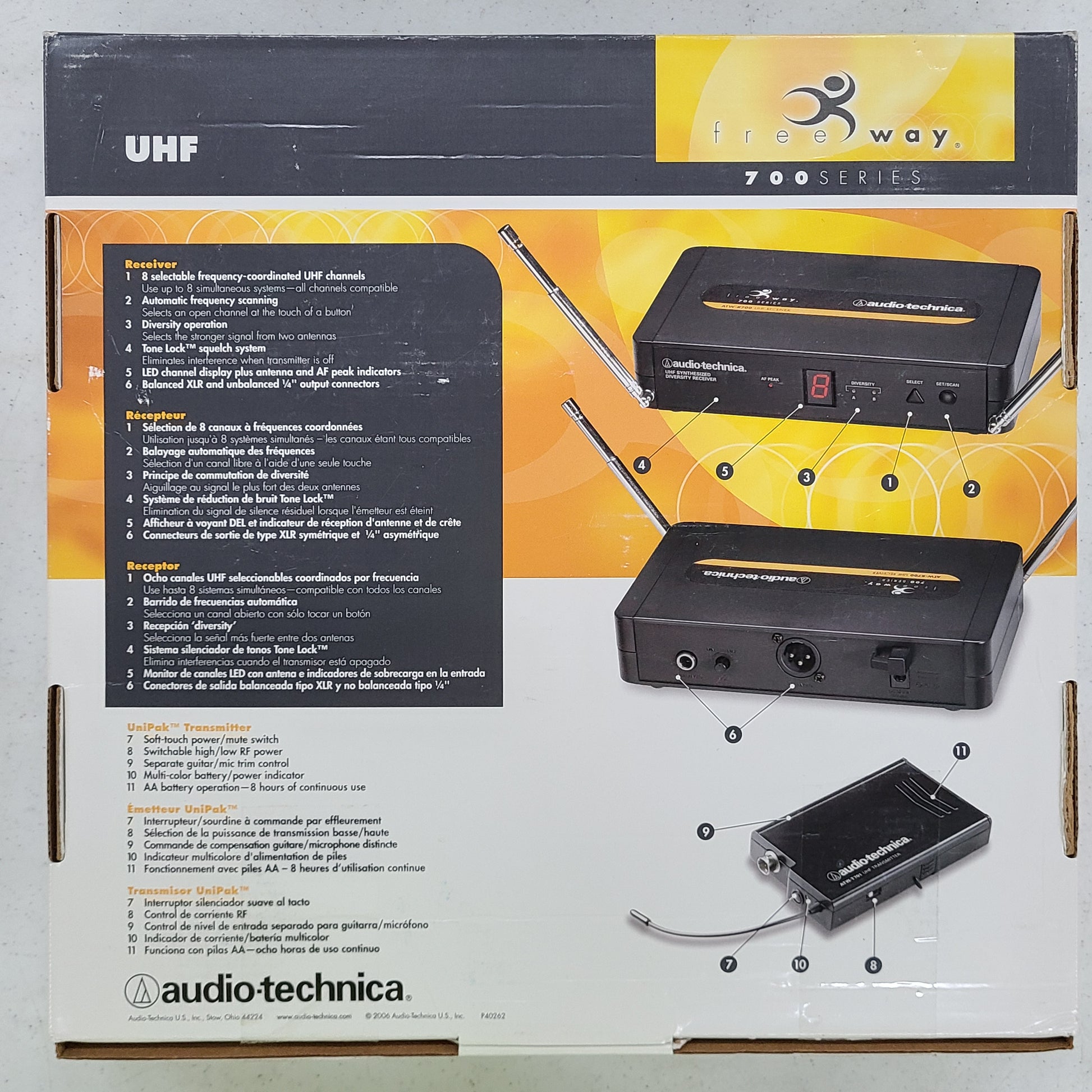

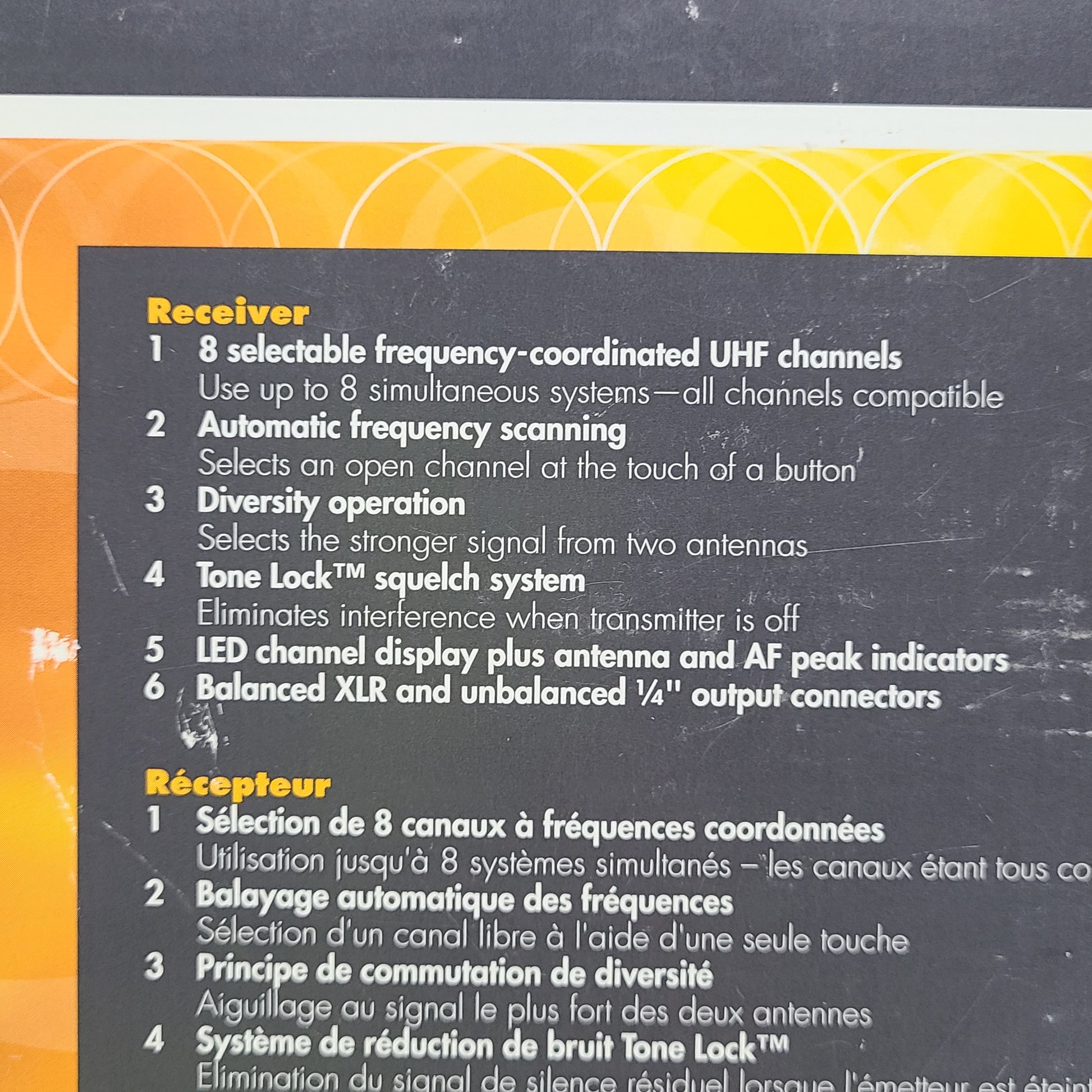

General System Features
-
UHF Operation: Offers 8 selectable channels in the 542.125 MHz to 561.250 MHz range.
-

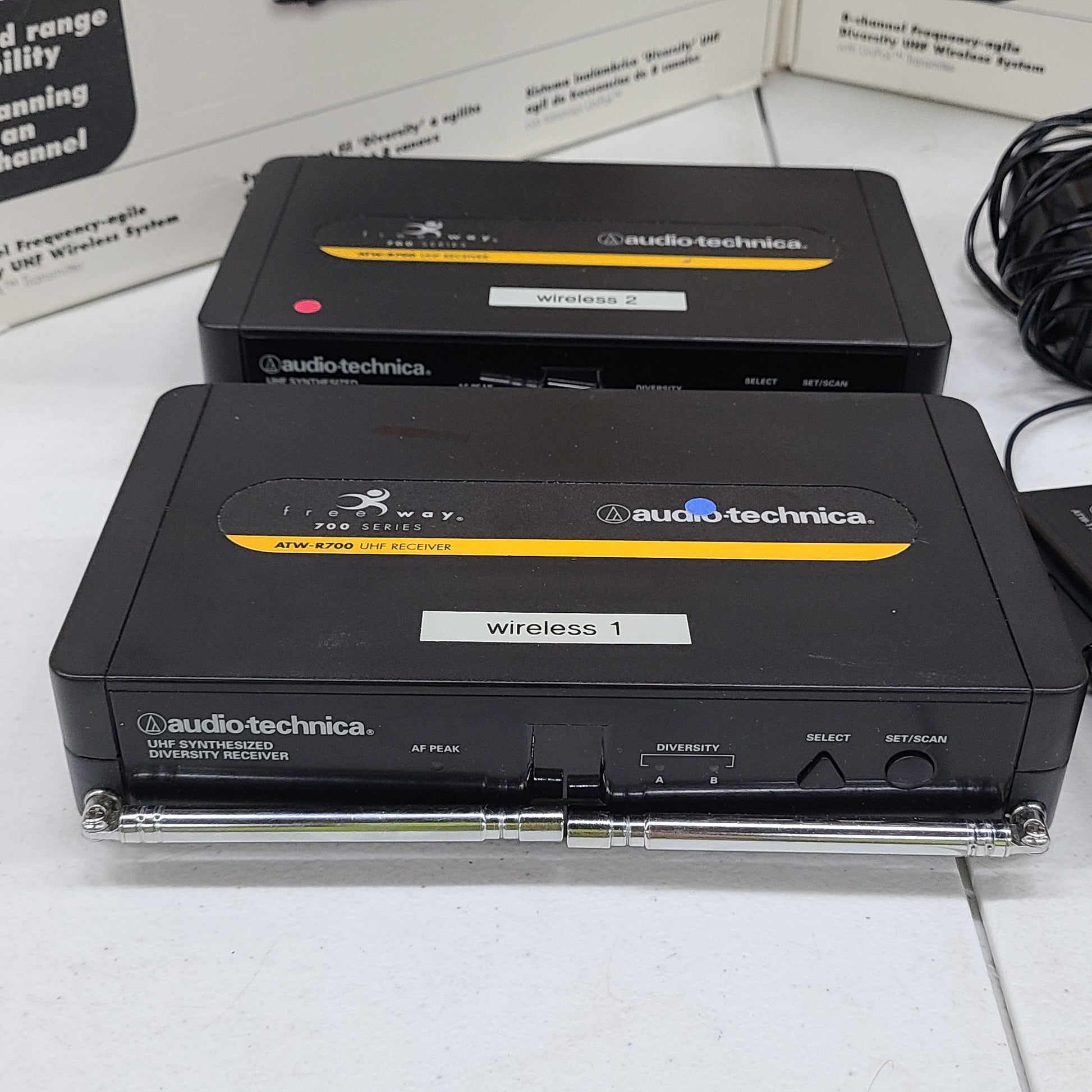

Antenna-Switching Diversity: Reduces signal dropouts and enhances reliability.
-
Automatic Frequency Scan: Finds the clearest channel for interference-free performance.
-
Tone Lock™ Squelch: Activates audio output only when the correct signal is received.
-

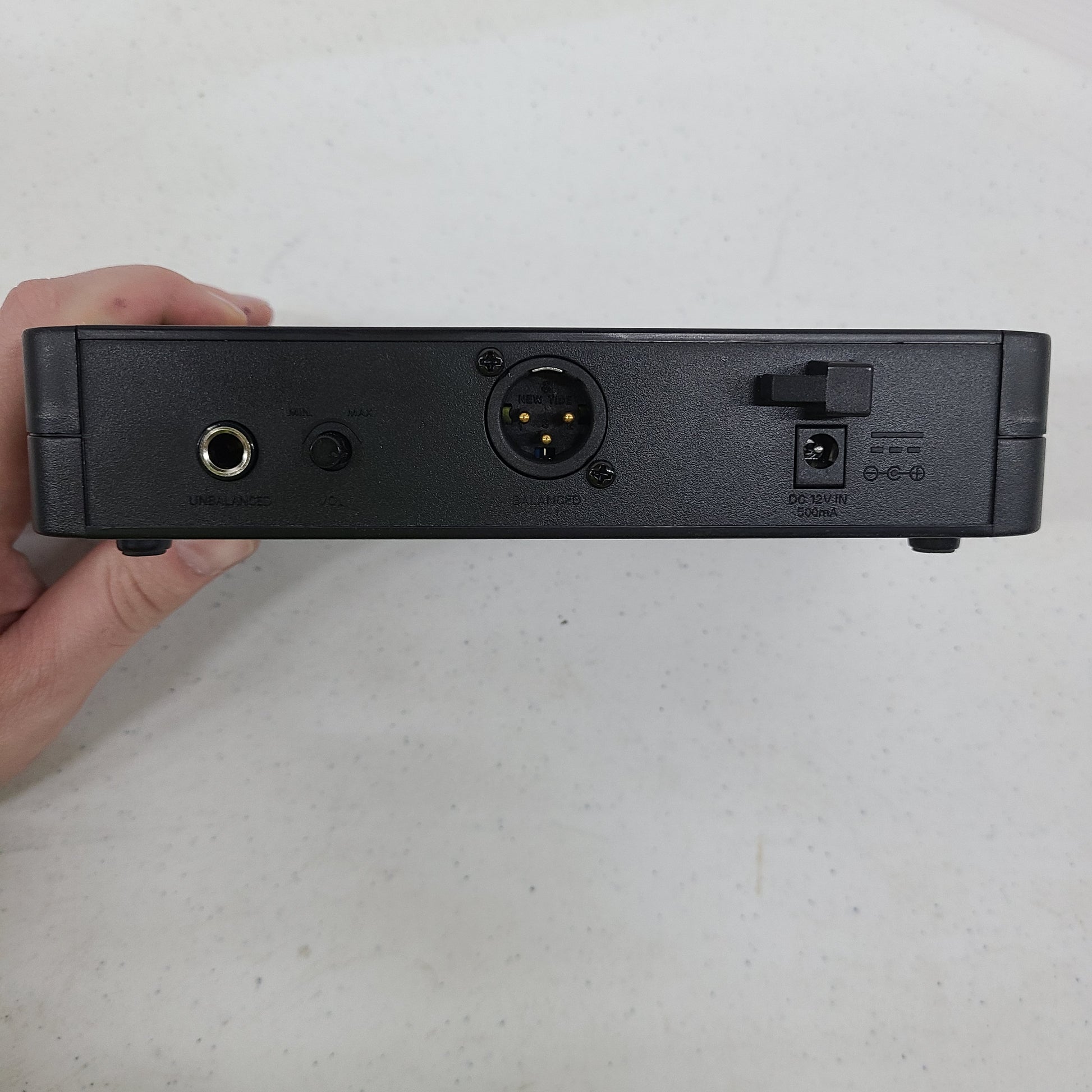

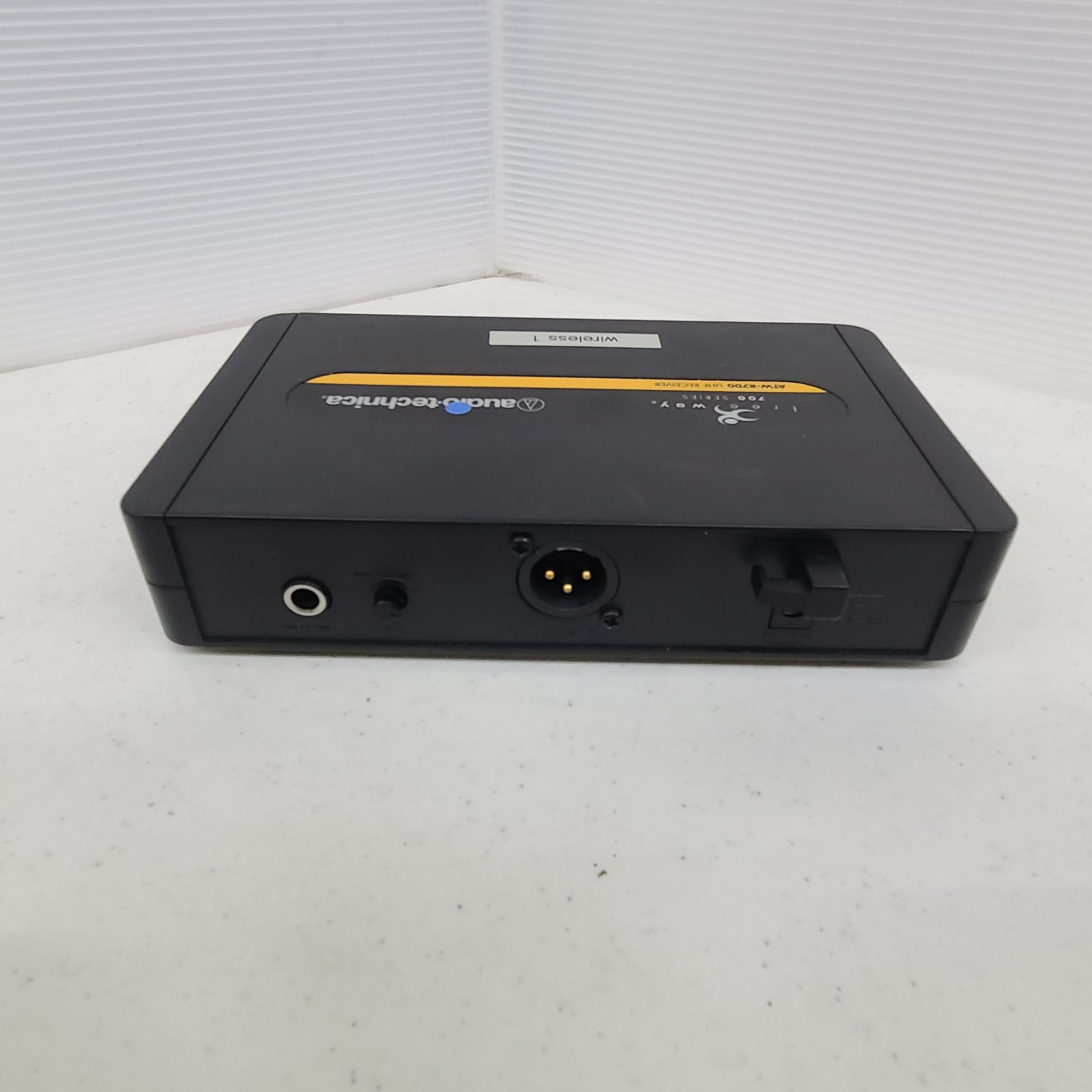

Output Options: Balanced XLR and unbalanced ¼” output jacks for flexible connectivity.
-
Operating Range: Up to approximately 200 feet under typical conditions.
-
Frequency Response: 100 Hz to 12 kHz.
-
Modulation Mode: FM with ±25 kHz max deviation.
-
Temperature Range: Operates between 40°F and 110°F.
Transmitter Options

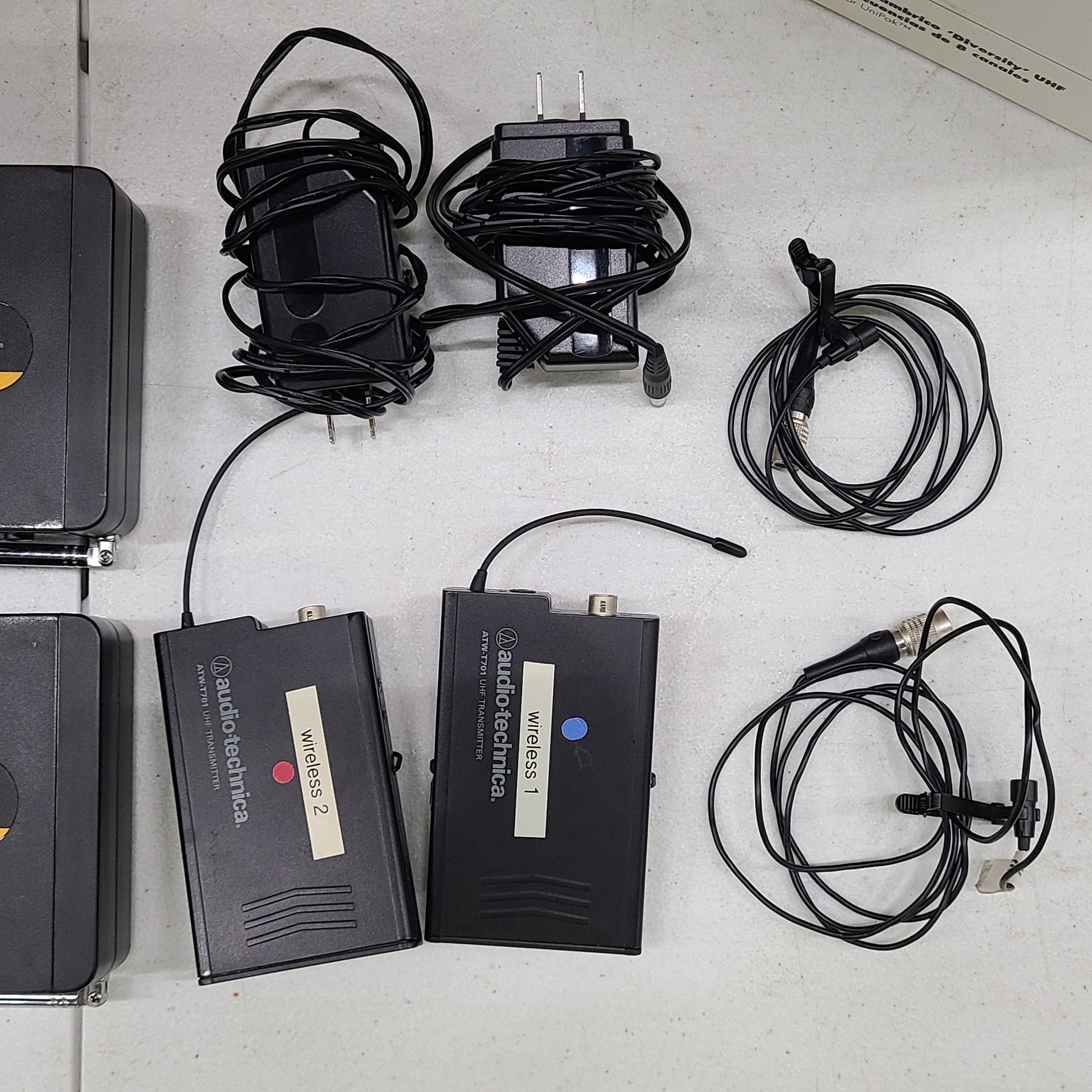

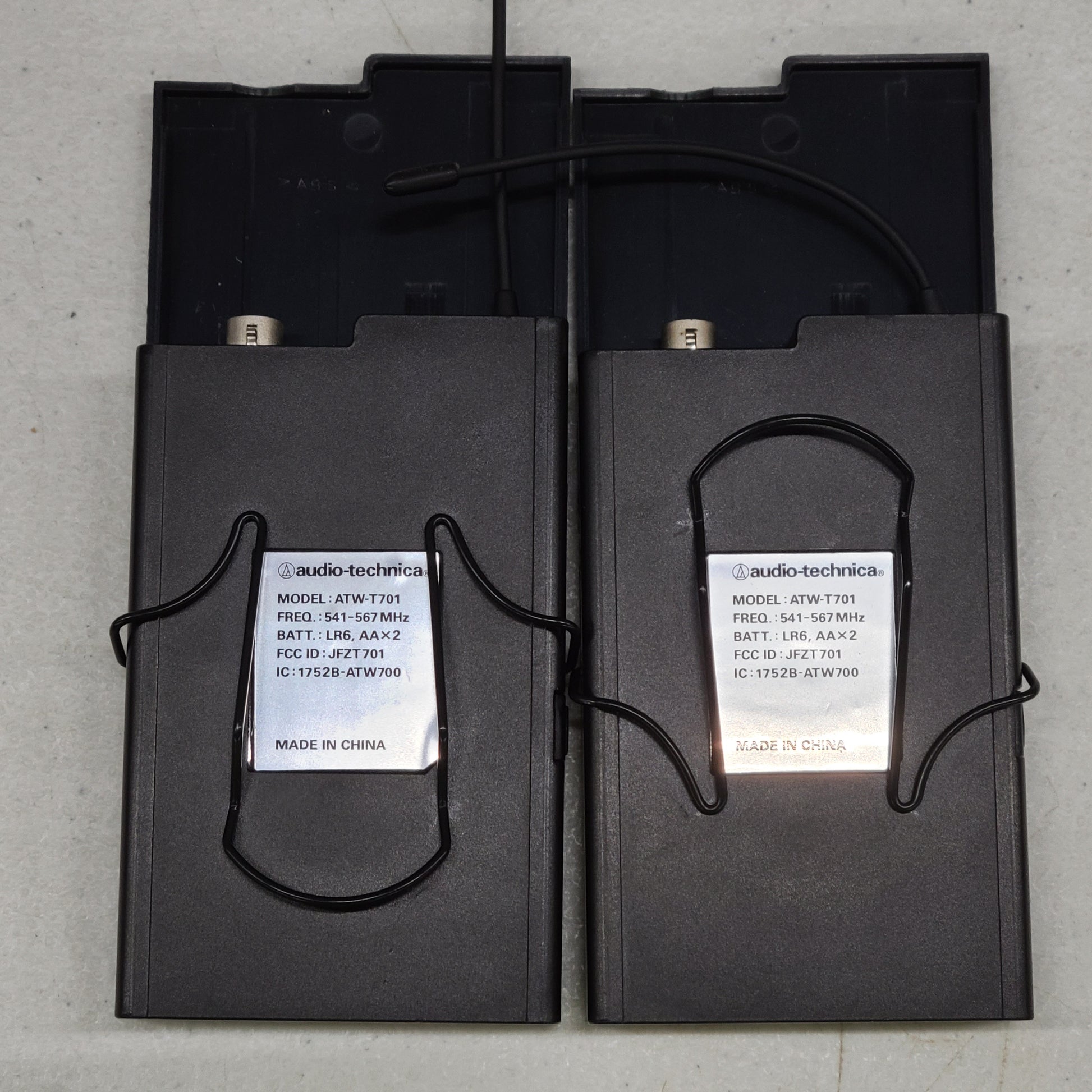

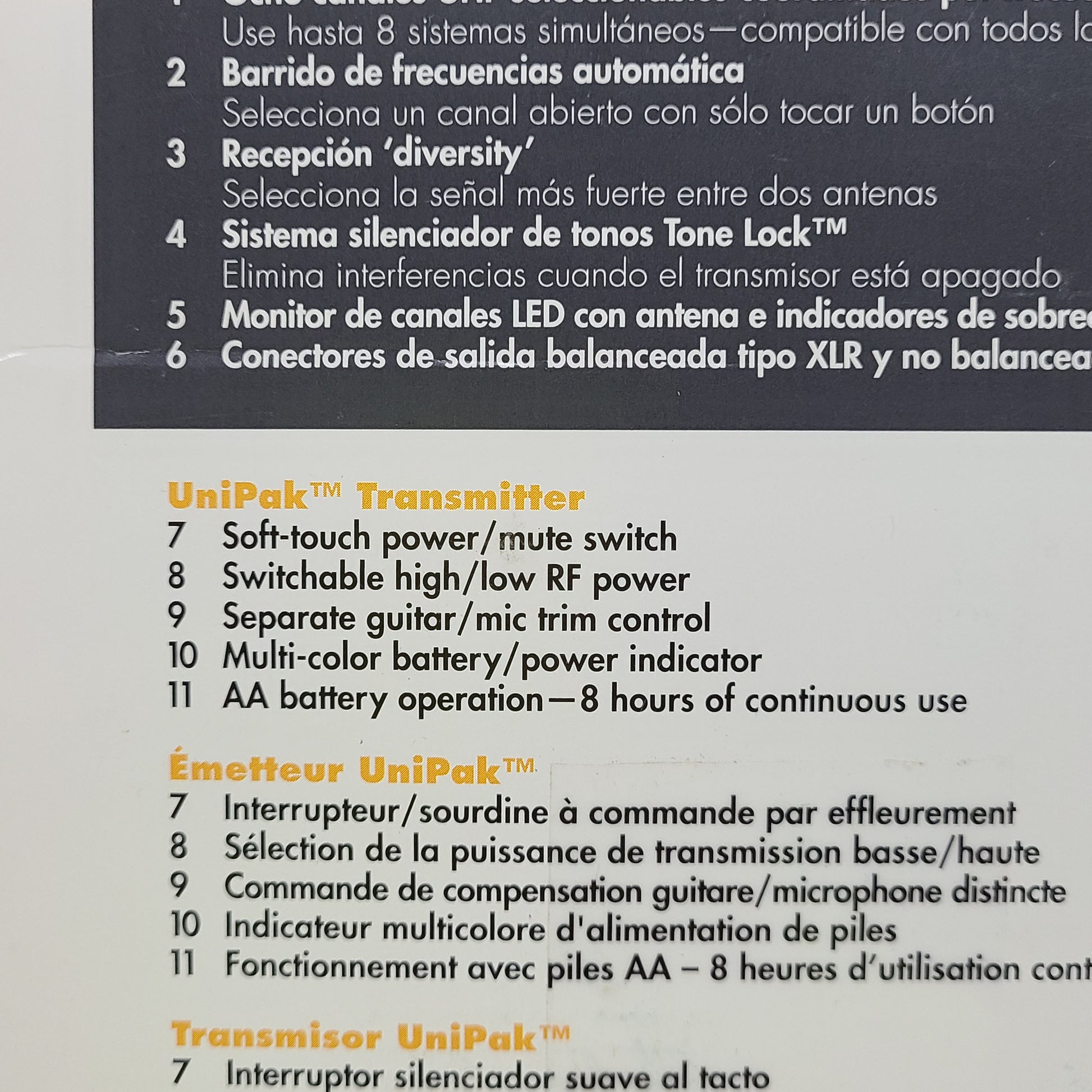

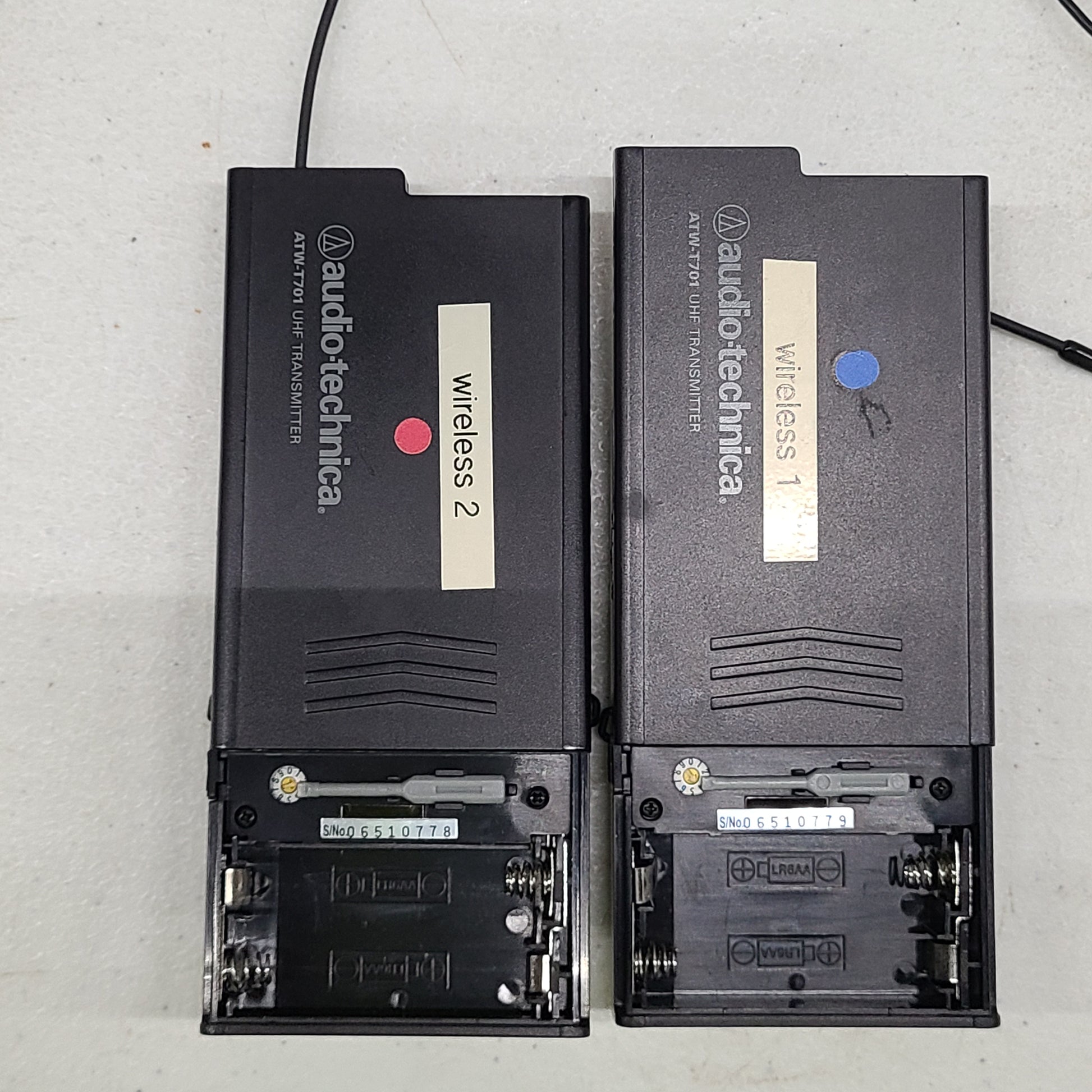

UniPak® Body-Pack Transmitter (ATW-T701)
-
Separate trim controls for mic or instrument input.
-
Switchable high/low RF power.
-
Multi-color battery and power status indicator.
-
Operates on two AA batteries (approx. 8–10 hours).
Handheld Microphone Transmitter (ATW-T702)
-
Dynamic unidirectional mic capsule.
-
Internal channel selector and trim control.
-
Soft-touch power/mute switch.
-
Operates on two AA batteries (up to 12 hours).
